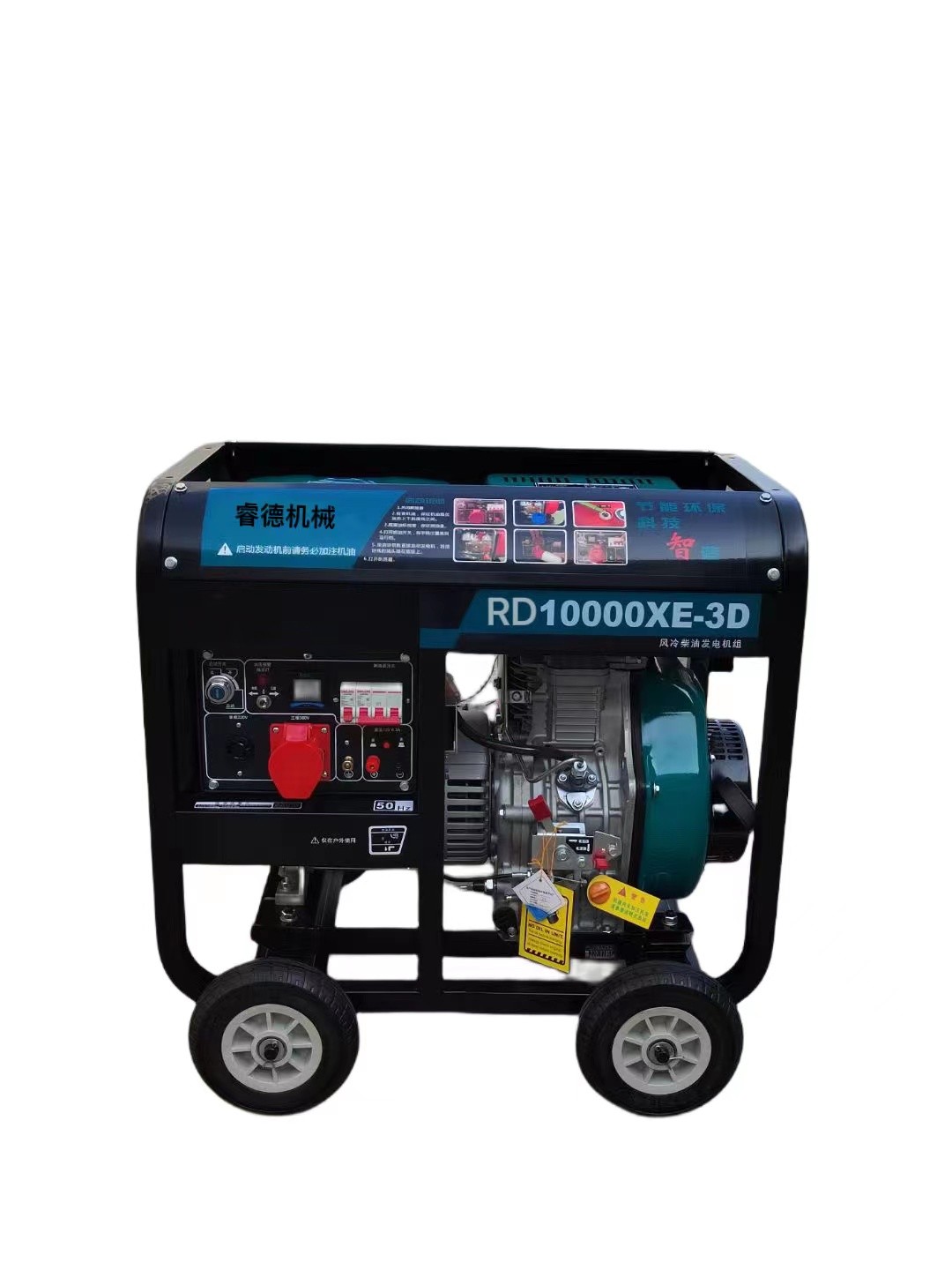

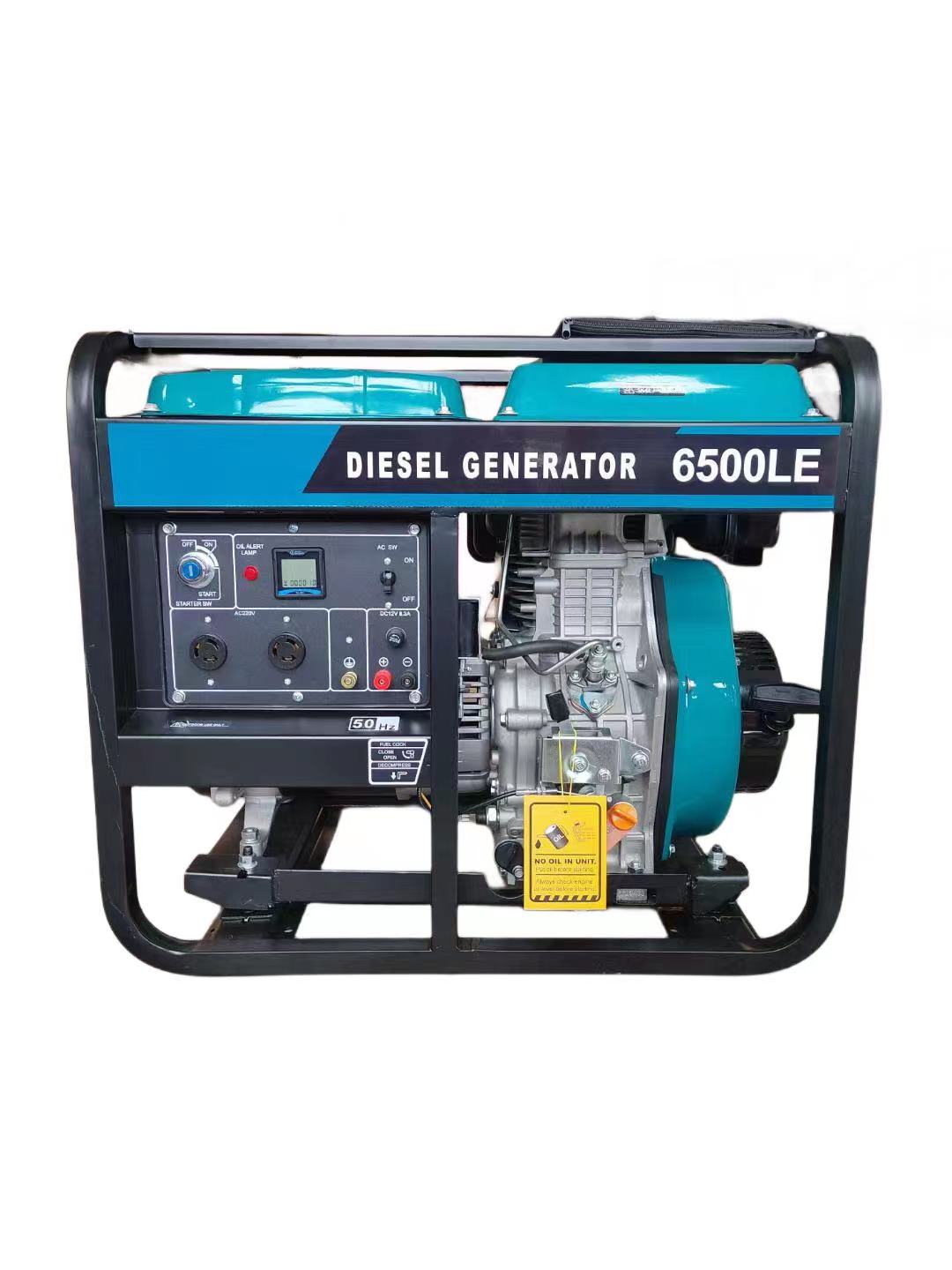

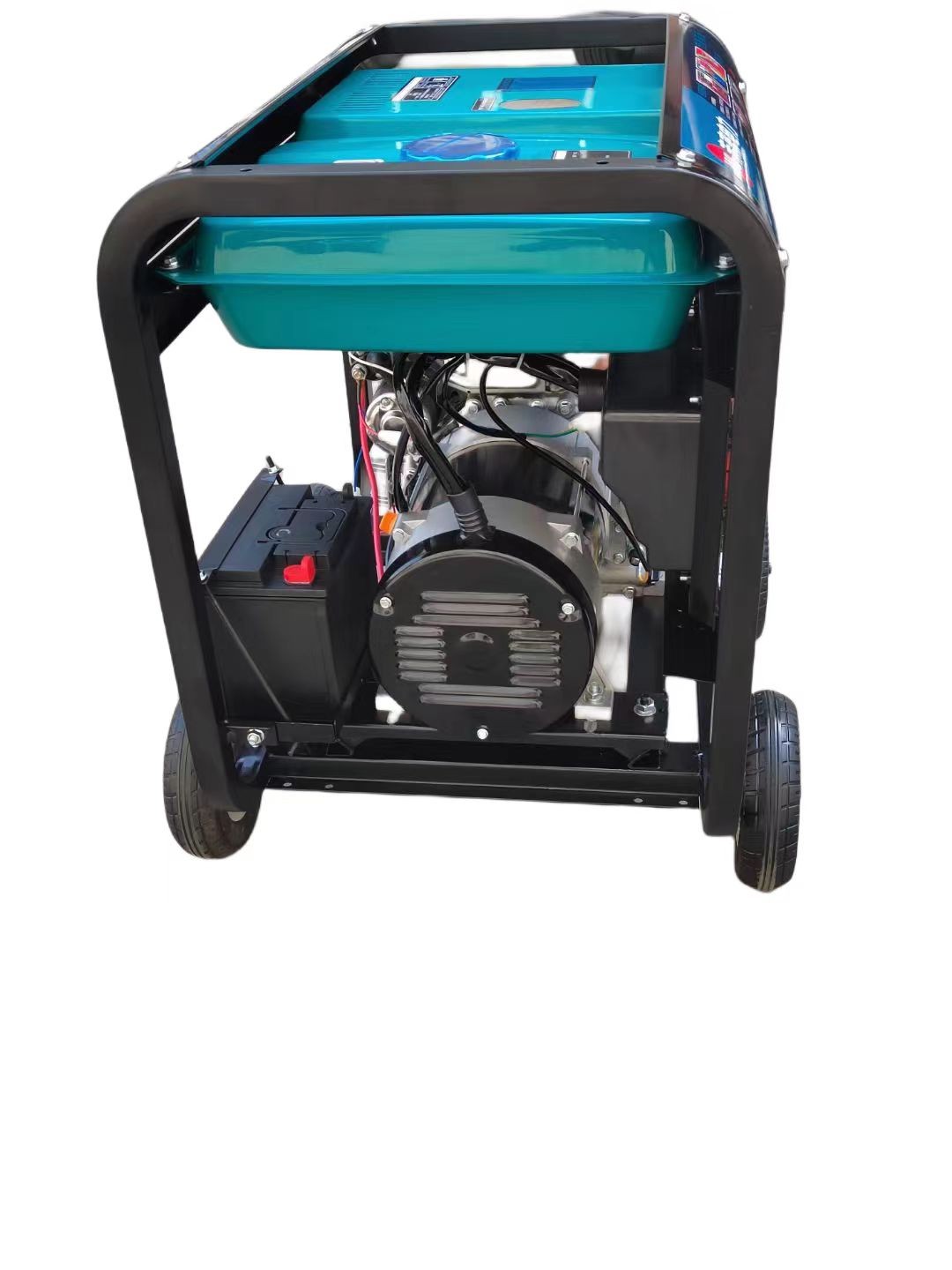

5kw open type diesel generator for home use

small,easy to move,good heat dissipation effec

Main Technical Specifications and Data
	MODEL		RD10000KLE/RD10000KLE-3		RD10000KLEA/RD10000KLEA-3





G	Type		Air Cooled Single Cylinder Diesel Generator
E
N	Max.AC Output	KVA	10	9.5	10.5	10
E	Rated AC Output	KVA	9.5	9	10	9.5
R	Rated AC Voltage	V	230(Single Phase),230/400(Three Phase)
A	Frequency	Hz	50		60
T
O
R
	Phase No		Single Phase/Three Phase
	Power Factor	Cosø	1.0/0.8
	Voltage Regulate		Automatic Voltage Regulator (AVR)
E	Model		1100FE
N	Type		Forced Air-cooled,4-Stroke,Direct-Injection
G	Displacement	cc	668
I	Max. Output	HP	13.6
N	Fuel		Diesel Light Fuel
E	Fuel Tank Capacity	L	24


	Continuous Operating Hours	H	15
	Oil Capacity	L	2.1
	Ignition System		Direct-Injection
	Starting System		Electric
	Operating Noise Level(7m)	dB(A)	68~75
PACKAGE	Overall Dimension L×W×H	mm	1100x640x740
DIMENSIONS	Net Weight	kg	215
