Widely used in small agricultural machinery, such as microcultivators, drainage and irrigationmachinery,Generators, small transporters, small tractors, transplanters and other field

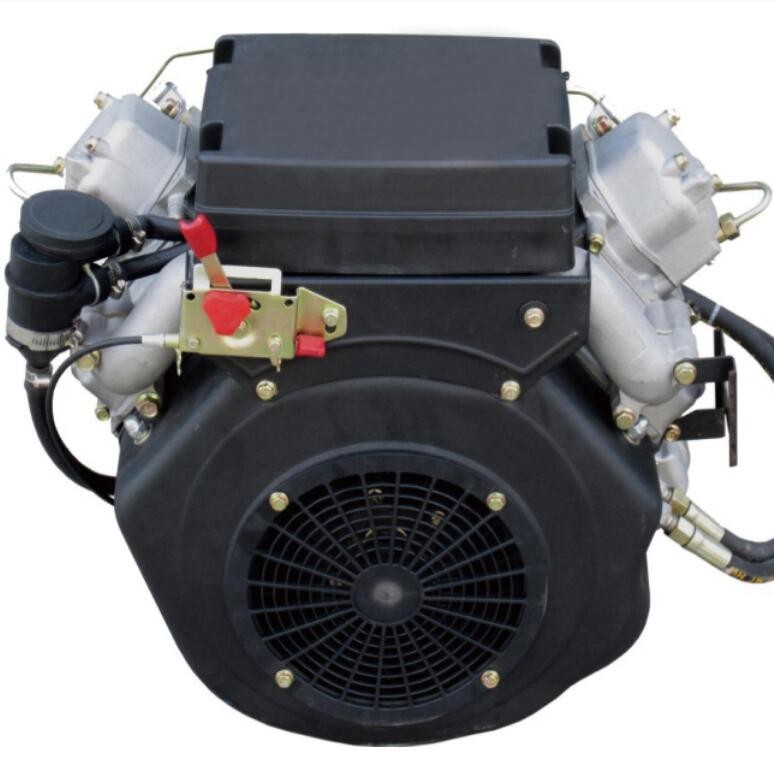

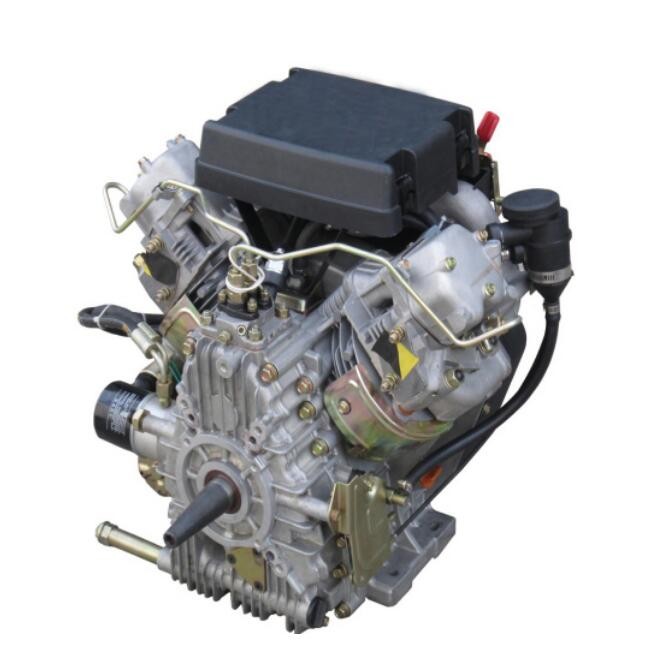

| 型号 Model | R2V88 | |
| 型式 Type | 双缸, V 型 , 4冲程, 风冷 V-twin, 4-stroke, air-cooled | |
| 额定功率 Rated Power(KW) | 12 | 13 |
| 额定转速 Rated Speed(r/min) | 3000 | 3600 |
| 最大扭矩/转速 Max Torque/Speed (N.m/r/min) | 45/2600 | |
| 燃油耗 Fuel Consumption (g/kw.h) | ≤ 275 | ≤ 285 |
| 排 量 Displacement(ml) | 870 | |
| 机油容量 Lube Oil Capacity(L) | 2.7 | |
| 润滑方式 Lubricating Way | 压力, 飞溅 Pressure & Splashing | |
| 噪音(在7米处 ) Noise at 7m (dB) | ≤ 86 | |
| 起动方式 Starting Way | 电起动 Electric | |
| 曲轴旋转方向 (面向输出端 ) Rotation Direction at Output End | 逆时针 Counter-clockwise | |
| 净重 Net Weight(KG) | 80 | |
| 净尺寸 Net Dimension(mm) | 550*391*459 | |
